Molicel Battery
Molicel Battery
Regular price
$10.00 NZD
Regular price
Sale price
$10.00 NZD
Unit price
/
per
Specs:
- Rated Capacity: 2.6Ah (Typical), 2.5Ah (Minimum)
- Rated Discharge: constant 0.52A discharge until 2.5V at 23C
- Rated Charge: Limiting 2.6A and constant 4.2V charge for 1.5 hours or 50mA at 23C
- Nominal Voltage: 3.6V
- Shipping Voltage: >3.45V (approximate state of charge on arrival <30%)
- Internal Resistance: ≤ 20mΩ (measured by AC impedance at 1kHz)
- End of Charge Voltage: 4.20±0.05V
- End of Discharge Voltage: 2.5V
- Charging Time: approximately 90 minutes
- Maximum Charging Current: 6A
- Maximum Discharging Current: 35A (this is NOT continuous)
- Operating Temperature:
- Charging: 0~60C
- Discharging: -40~60 oC
- Storage Temperature: <35C, recommended <23C for long term storage
What's in the box:

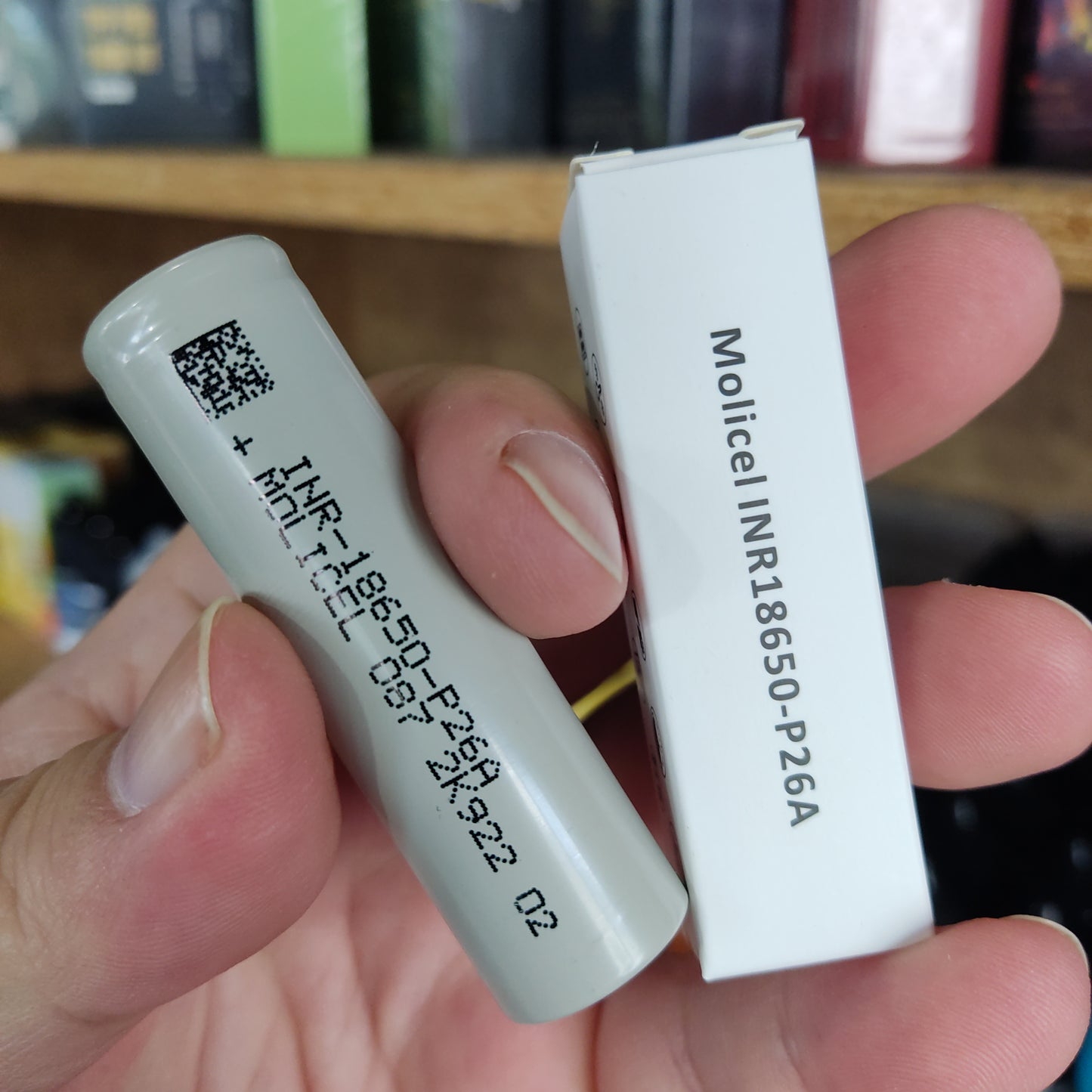

- 1 x Molicel P26A 18650 Battery
